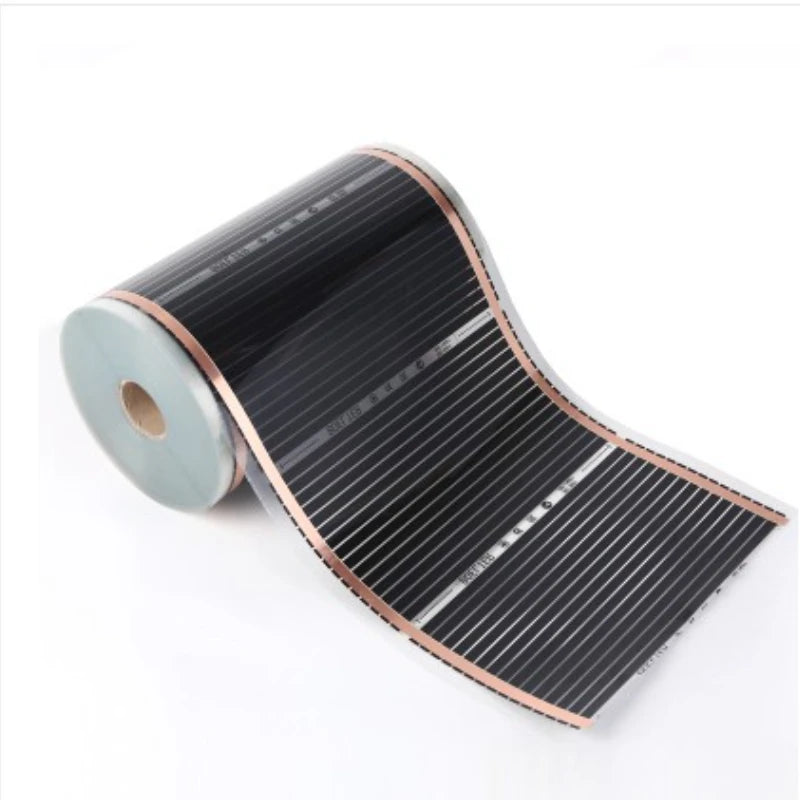

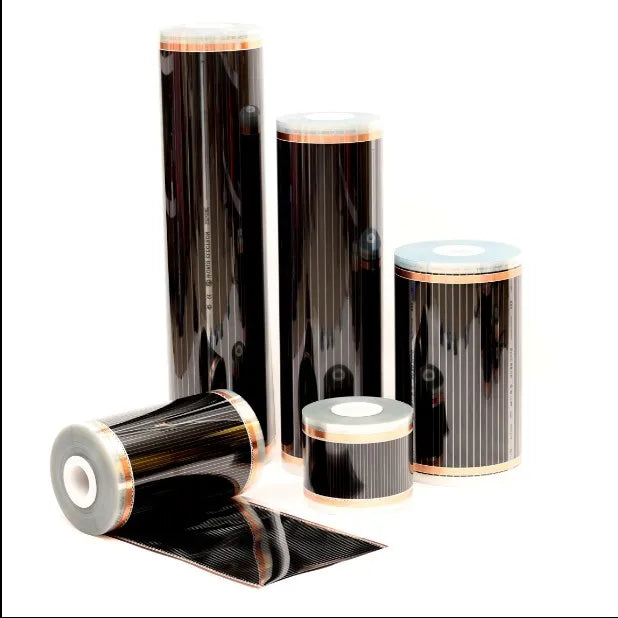

Infrared Carbon Heating Film – 50cm Width Electric Mat for Floor Warming

The Infrared Carbon Heating Film – 50cm Width is a thin, flexible electric mat designed for floor warming, suitable for underfloor heating installations in homes and other living spaces. It delivers even infrared warmth from the floor, helping you maintain comfortable temperatures with a clear, unobtrusive setup.

Key Features

• Even infrared heat from carbon film provides comfortable warmth at floor level, with the potential to reduce the need for higher room air temperature.
• 50 cm width and 0.338 mm thickness allow for flexible installation under a variety of floor coverings, while ensuring minimal bulk.
• Rated at 220 W/m2 and designed for 200–240 V operation (50/60 Hz), with a maximum surface temperature of 52°C for safe usage.
• Simple wiring approach with clear integration paths: heating film, power feed, floor temperature sensor, and thermostat ready for system setup.
• Infrared wavelength in the 8–15 μm range supports efficient heating and even heat distribution beneath the floor.

Product Details

• Model: HF-220

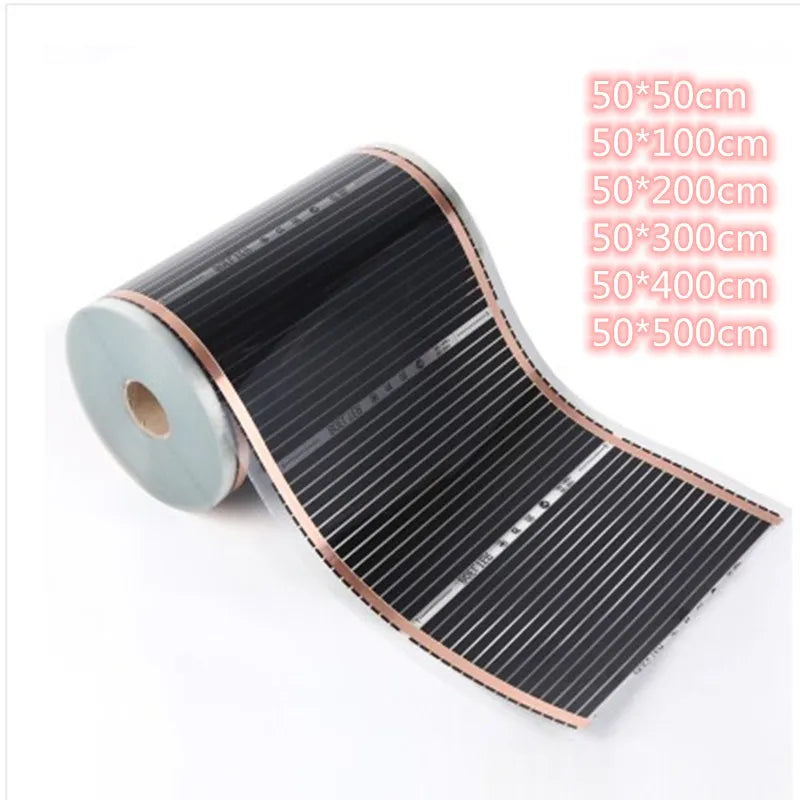

• Width: 50 cm
• Thickness: 0.338 mm (note: 0.25 mm films are not suitable for underfloor heating)
• Material: PEX
• Infrared wavelength: 8–15 μm
• Power density: 220 W/m²
• Operating voltage: 200–240 V, 50/60 Hz
• Max surface temperature: 52°C
• Origin: Mainland China
• Applications: Floor heating films for underfloor warming systems

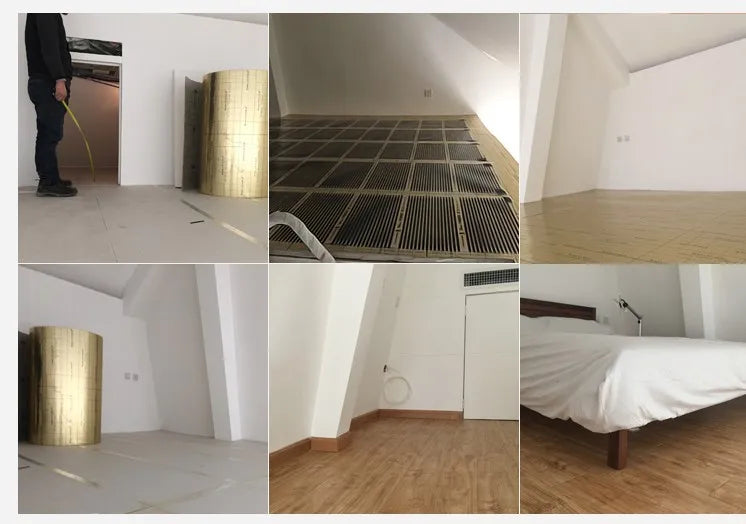

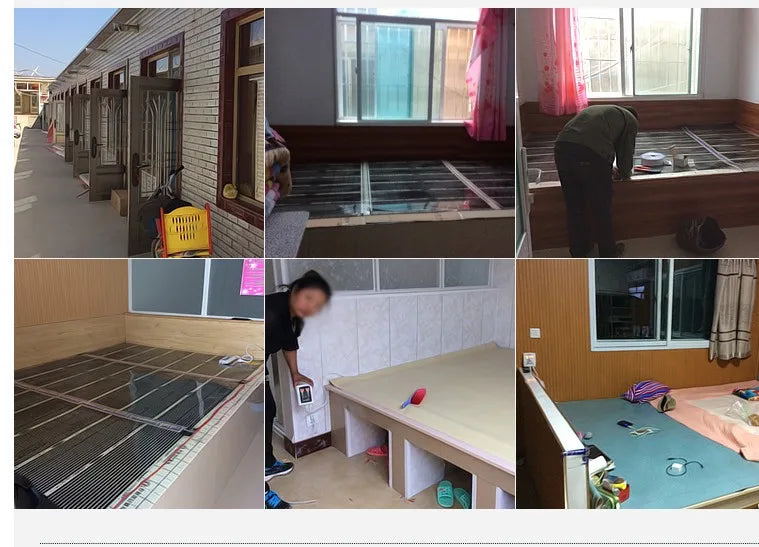

• Installation notes: Wiring includes two plans—heating film to power and power to the film—plus floor temperature sensor and thermostat; overall installation power is part of the setup
