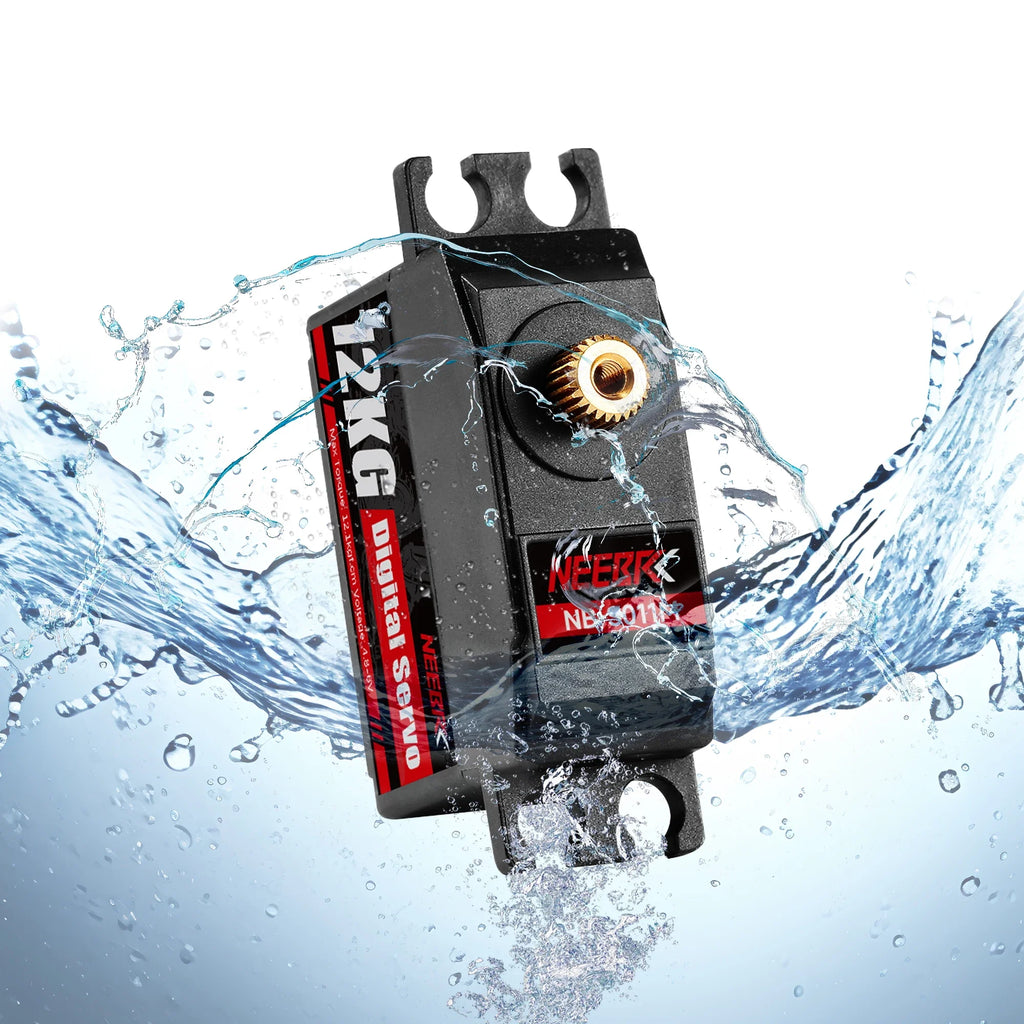

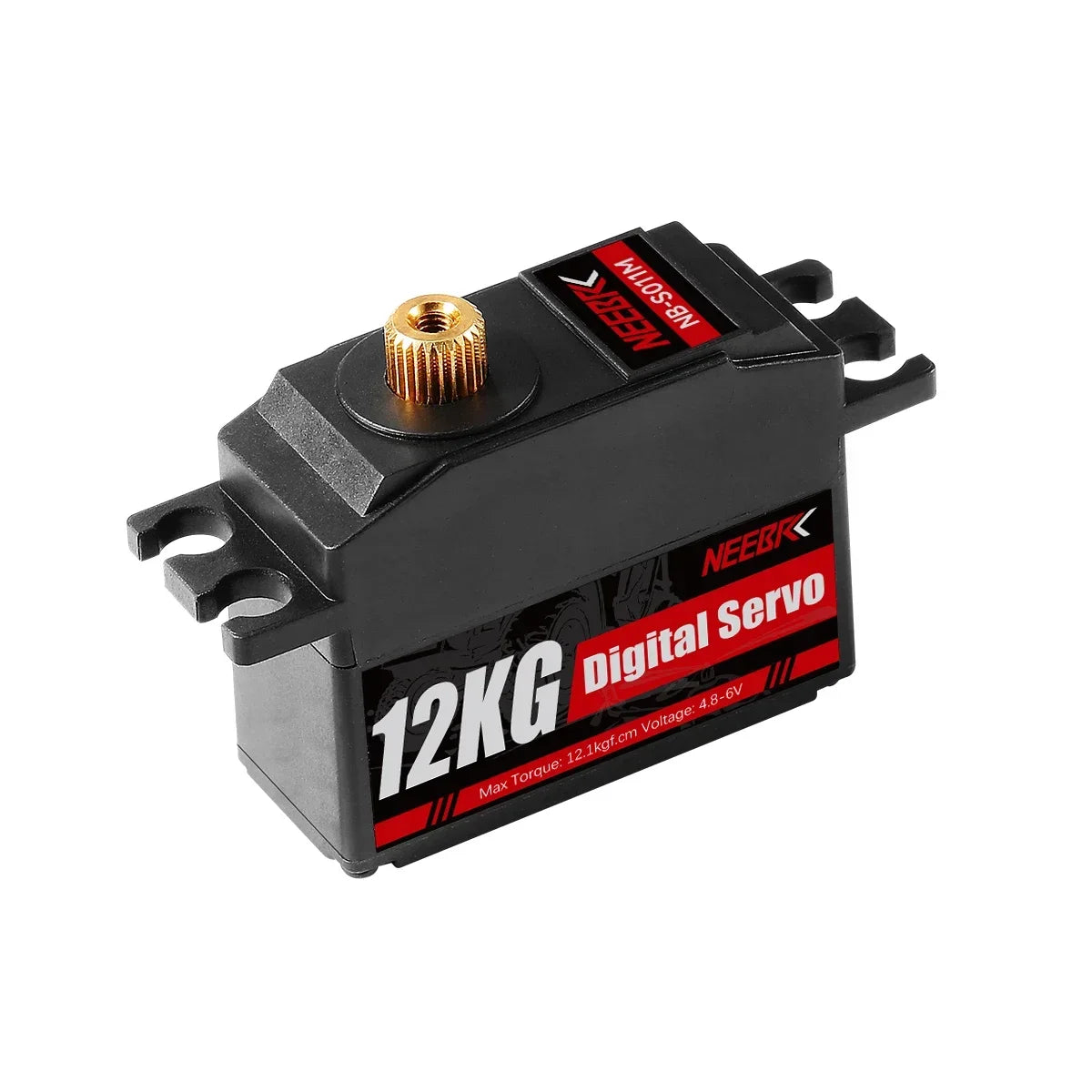

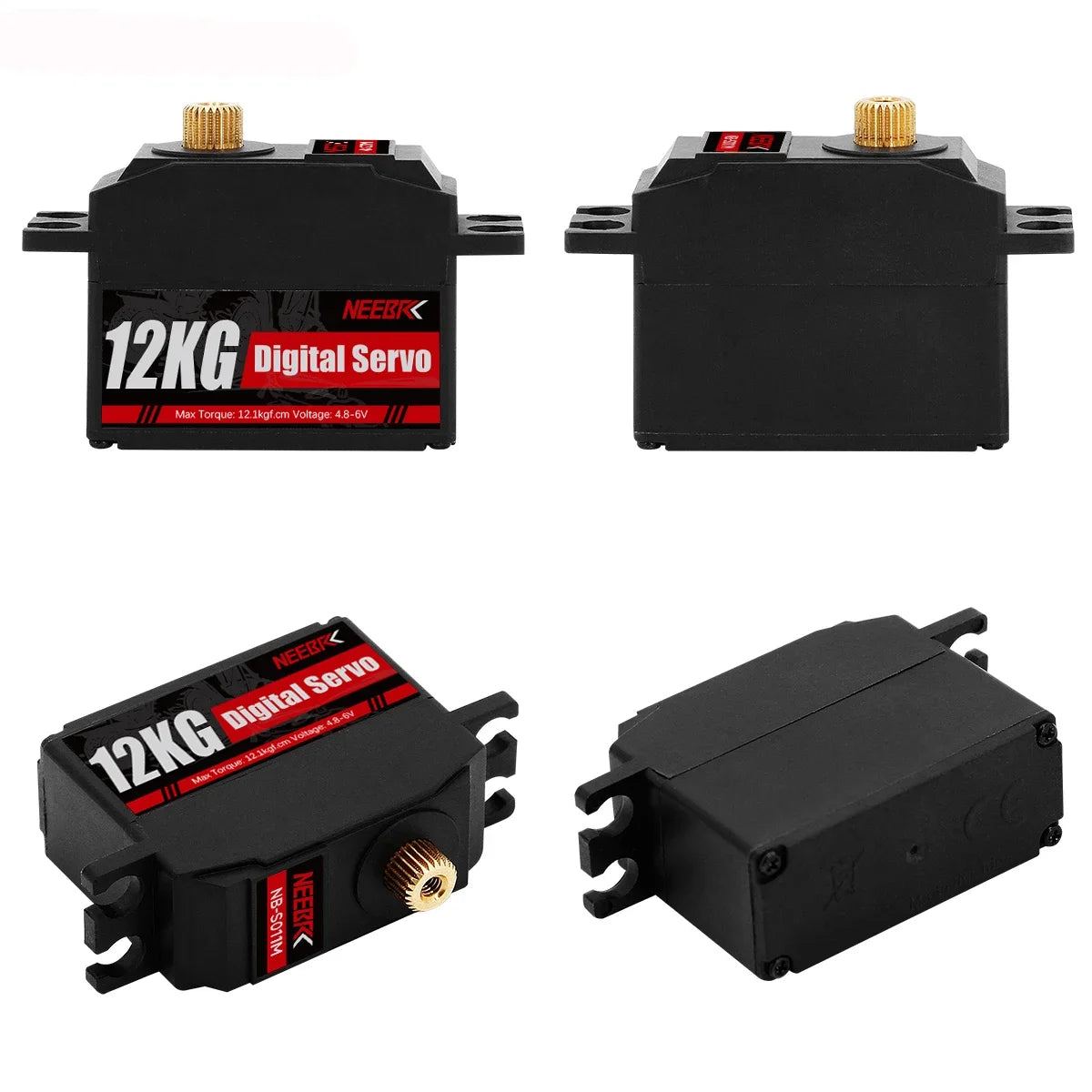

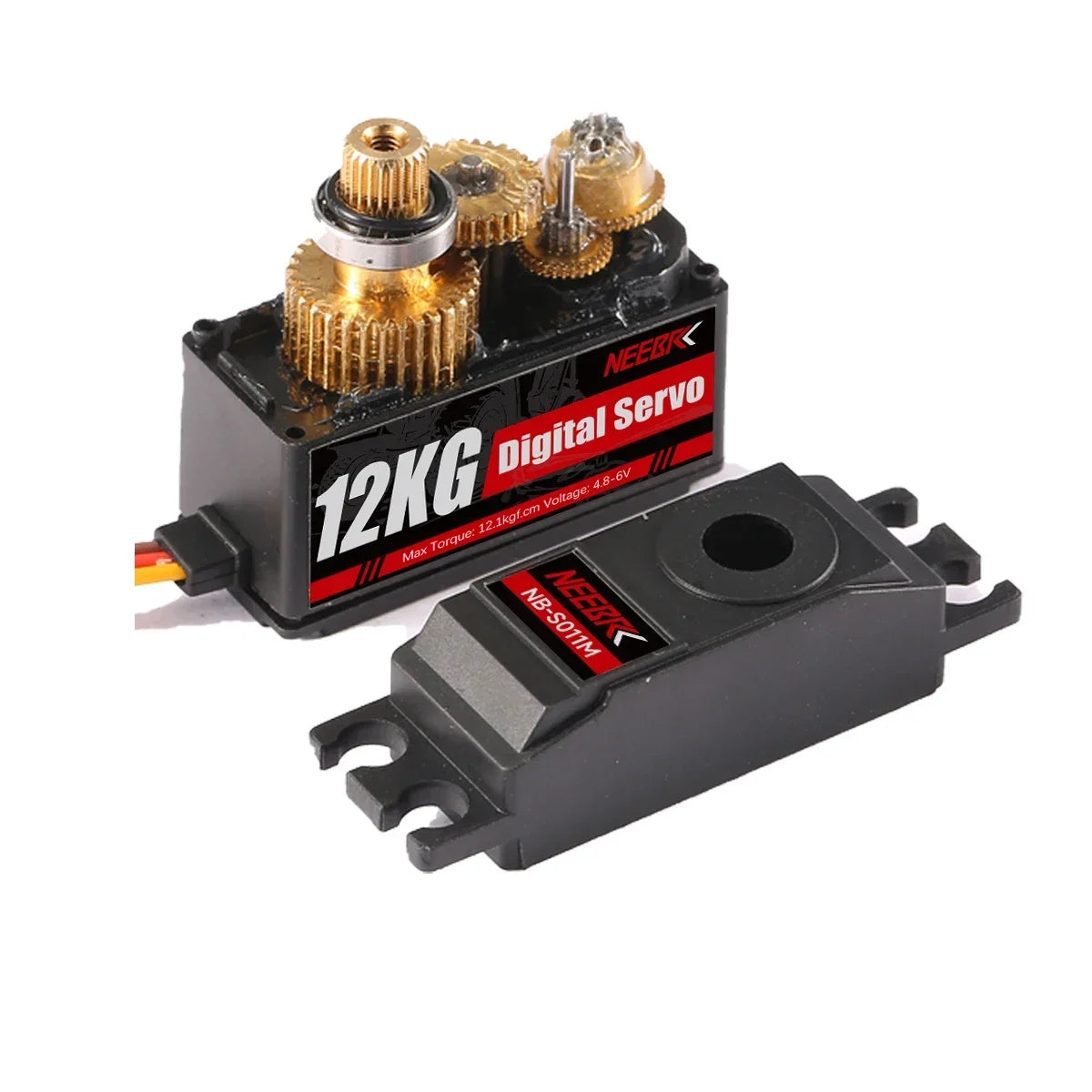

NEEBRC 12KG Metal Gear Short Body Digital Servo Low Profile for 1/12 RC Car Wltoys 12428 12423 WPL MN Upgrade Part Plane Boat

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model

Specifications:

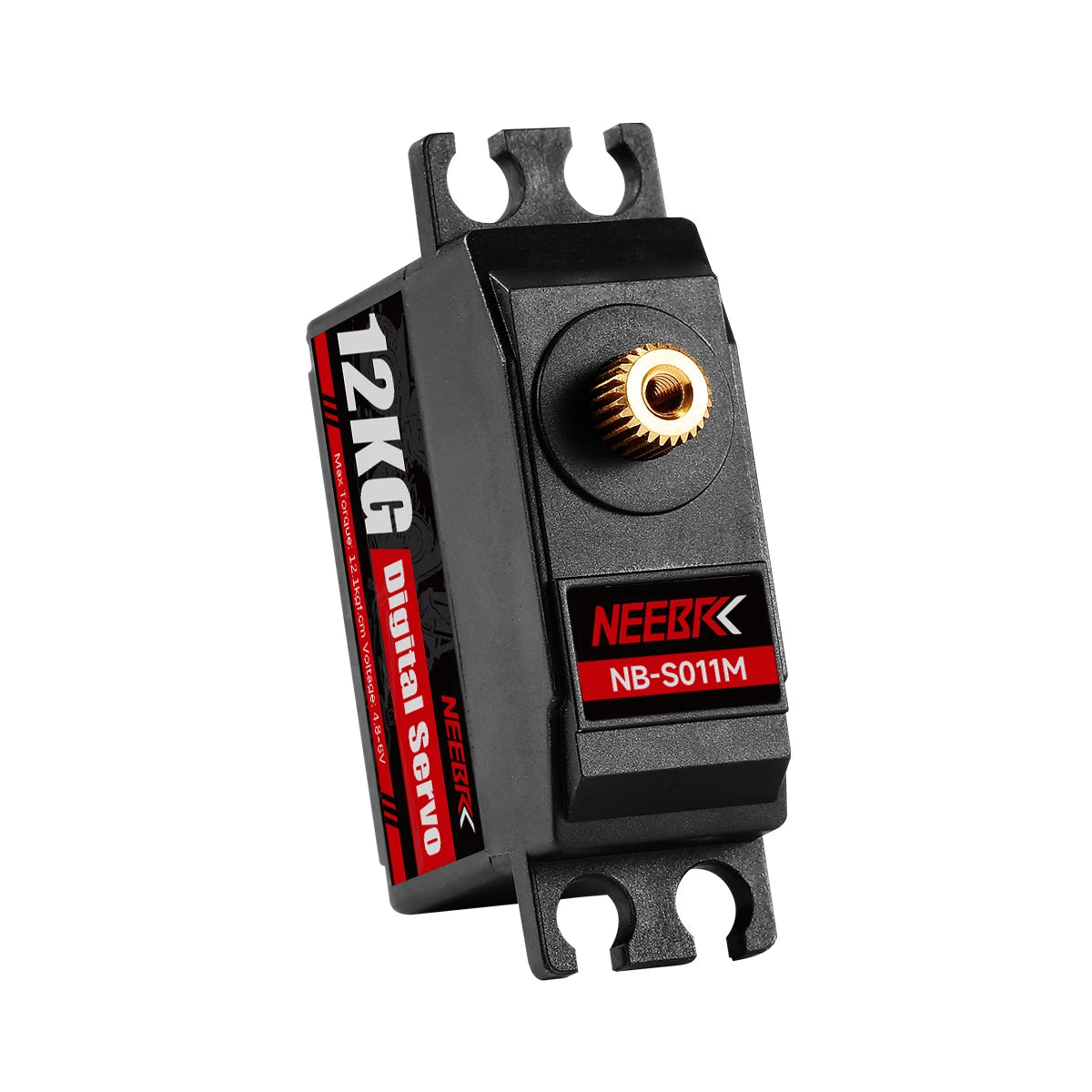

Item name: NEEBRC NB-S011M

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

Max. Torque : 12.1kgf·cm

No Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°

Stall Current:4.8V ≦1900mA;6.0V≦2500mA

Consumption Current* (No Load):4.8V ≦120mA;6.0V≦130mA

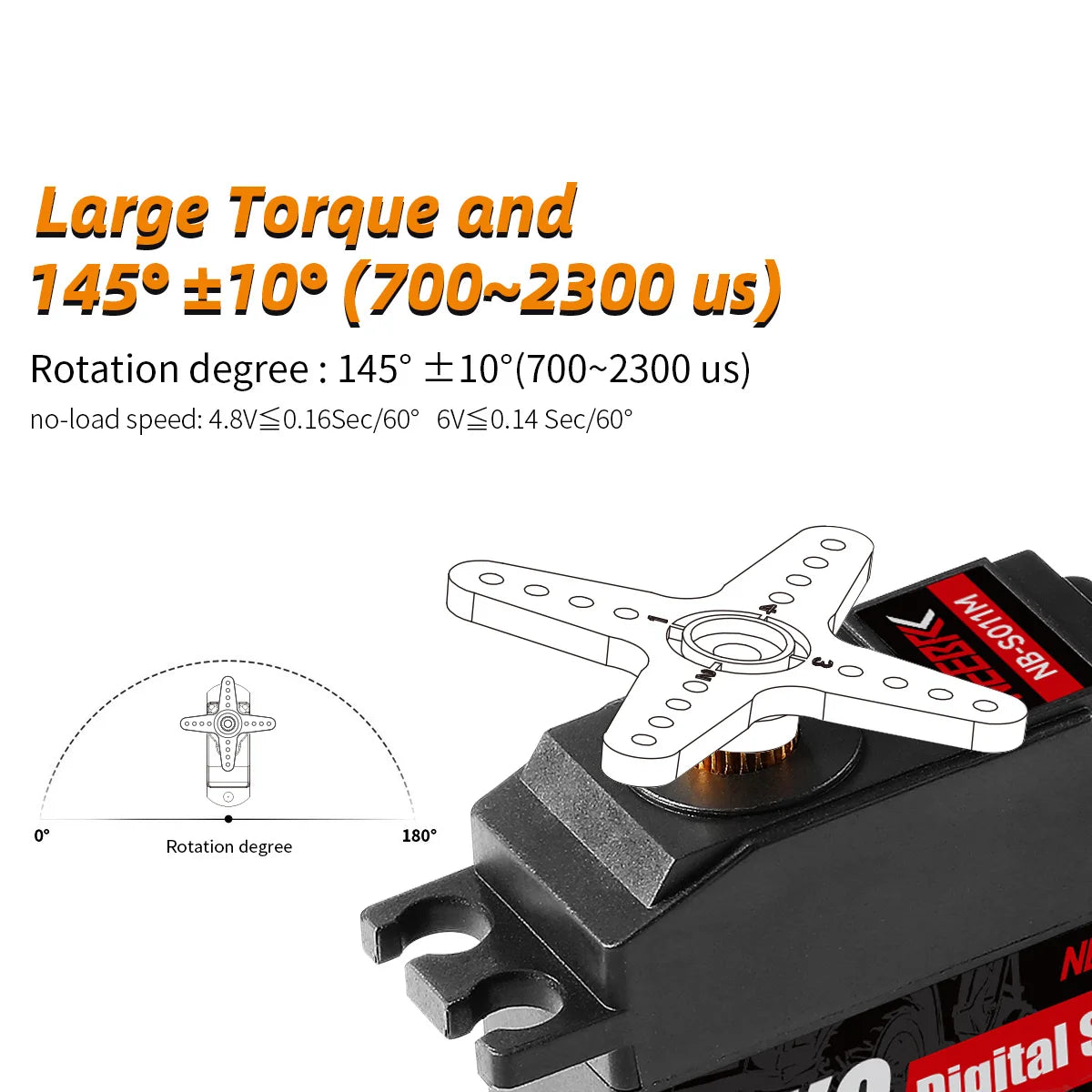

Max. Operating Travel Angle:180° ±10° (500~2500 us)

Remote control Angle:90°±2°

Dead Band Width: ≤ 1us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

Gear Set Material : Metal gear

Weight: 21g

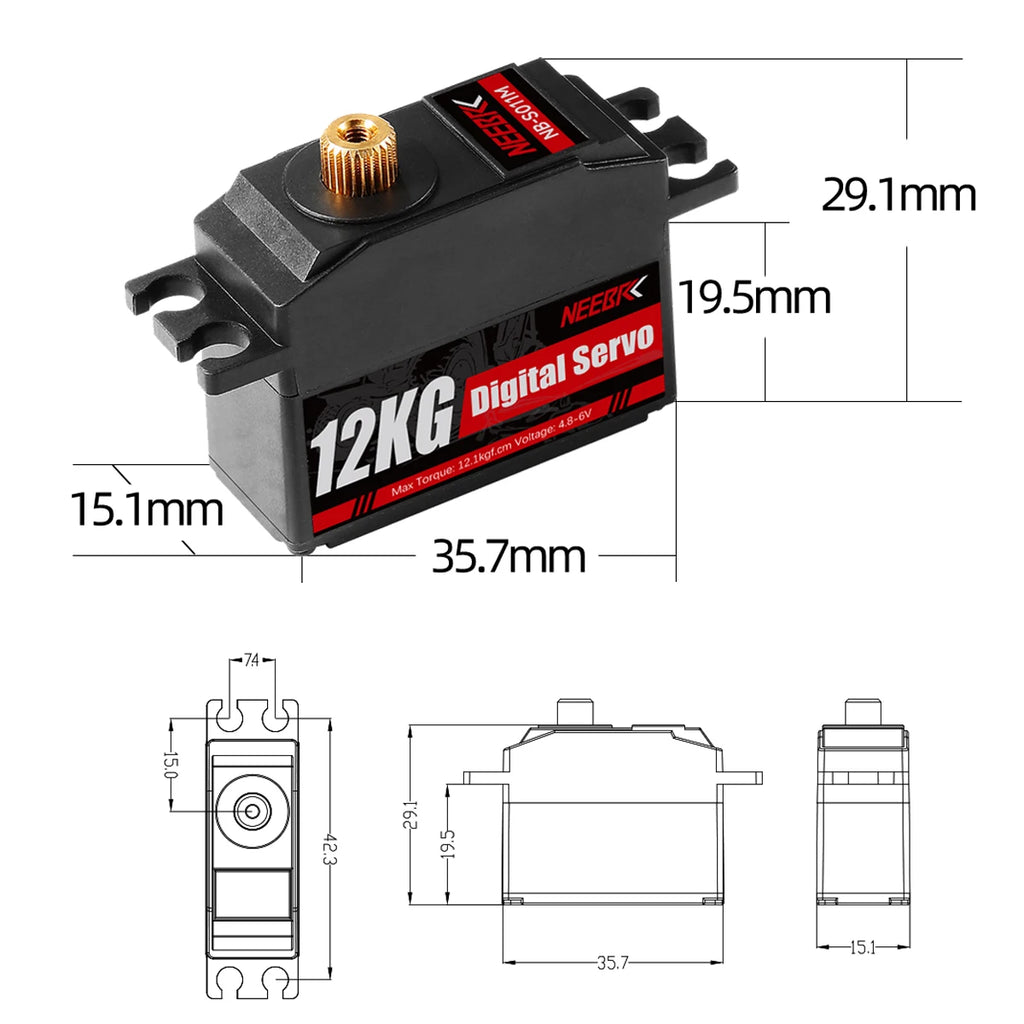

Size: 42.3 × 15.4 × 32.1mm

Length of Connector cable: JR 250MM±5mm (exposed without plug)

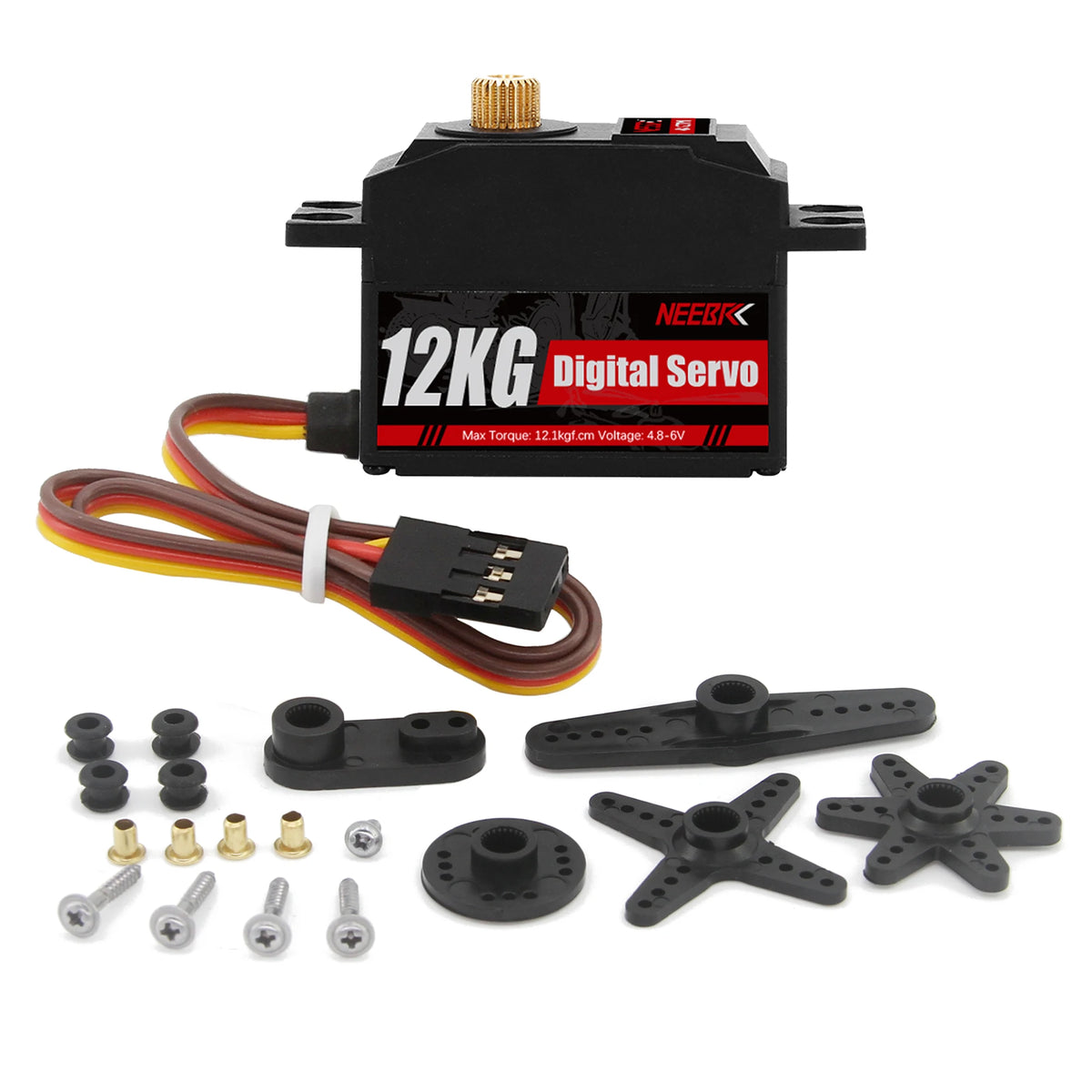

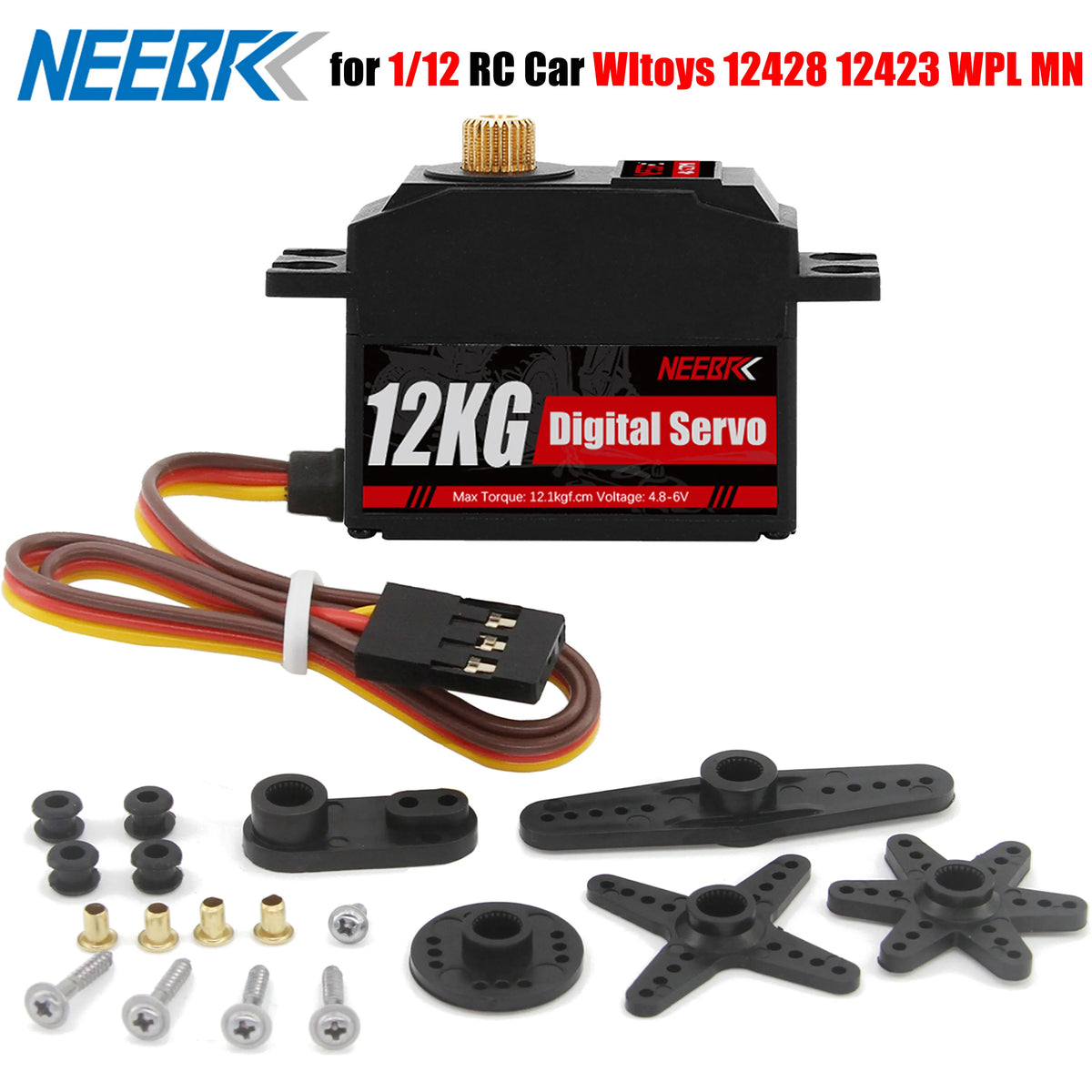

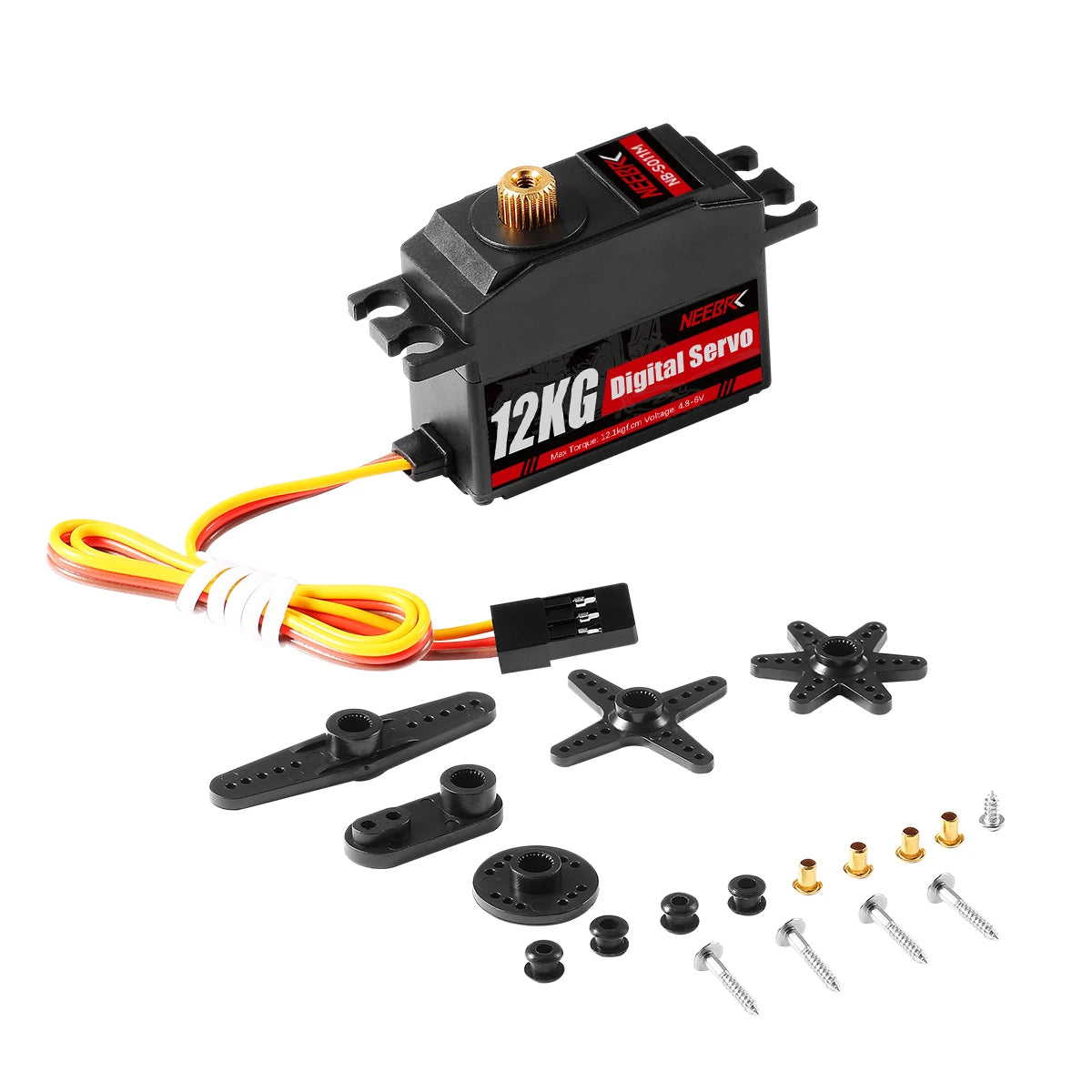

Package included:

1 * 12KG Digital Servo
1 * Servo Arm Accessories

Note:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
