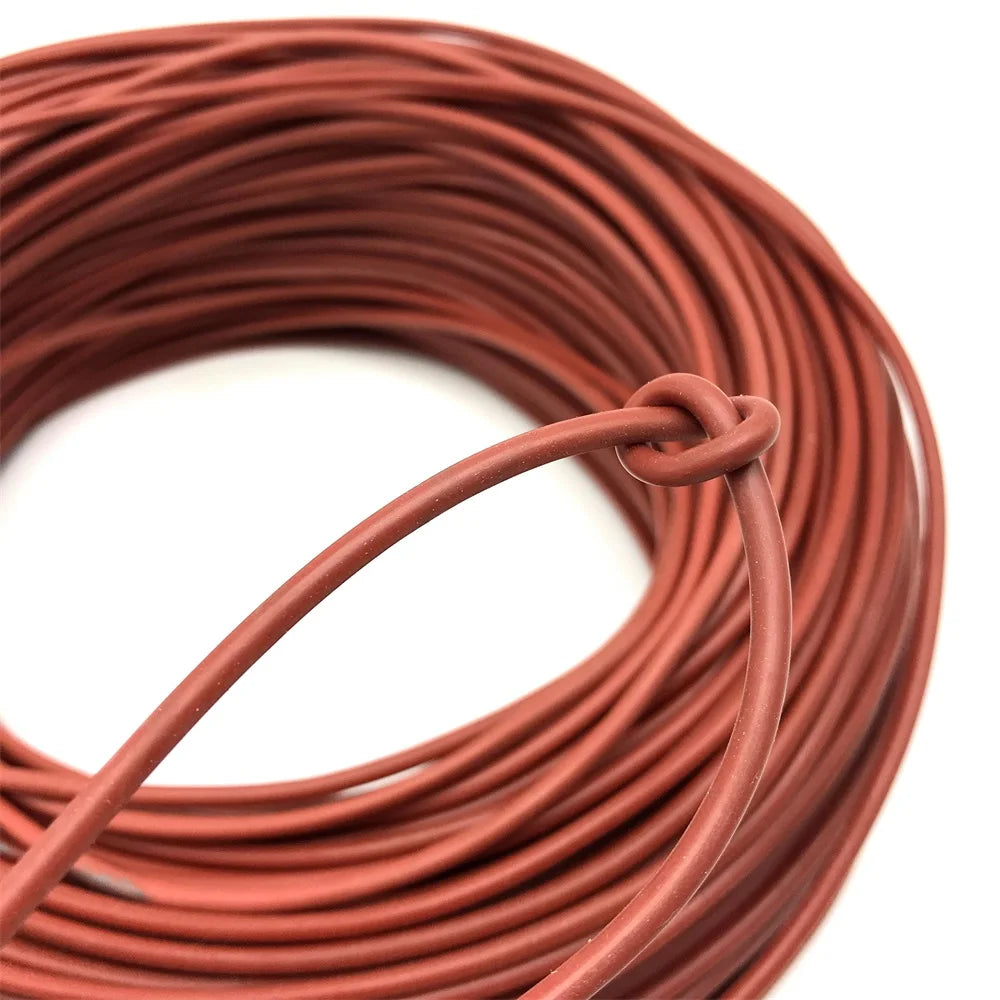

Carbon Fiber Heating Cable – 12K Infrared Wire for Radiant Floor Warming

Carbon Fiber Heating Cable – 12K Infrared Wire for Radiant Floor Warming is a flexible underfloor heating solution designed for installers and DIY renovators seeking even, comfortable warmth across living spaces.

• Even, stable warmth: 12K carbon fiber conductor with 33 Ω/m resistance delivers consistent heat along the cable for a uniform floor surface.
• Durable, safe construction: Silicone rubber insulation with a PEX jacket provides high-temperature resilience (max 200°C) and low leakage current (0.05 mA/m).

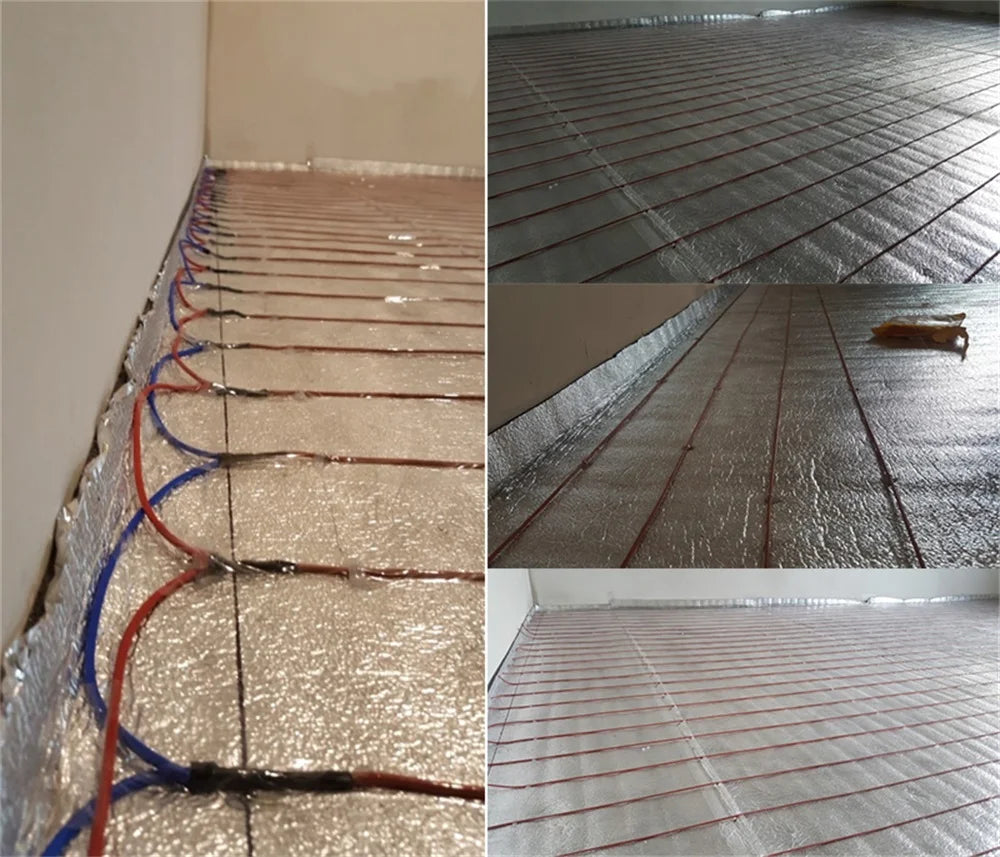

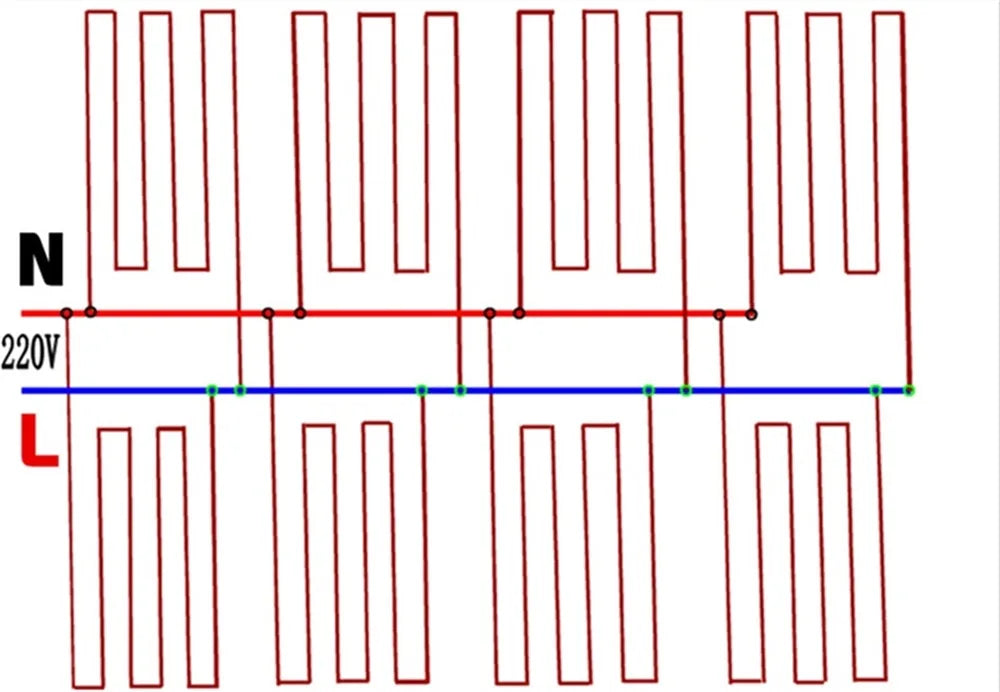

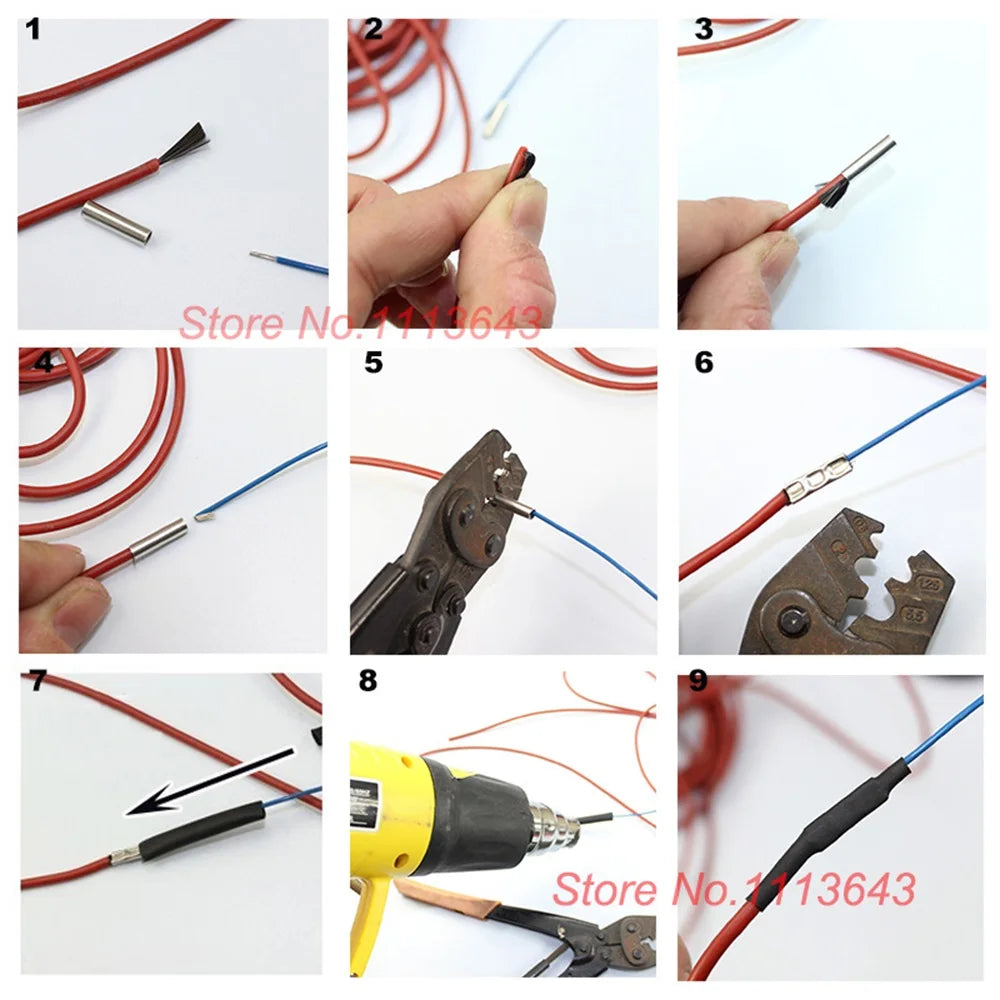

• Installation-friendly packaging: Available in bundles from 10 m to 100 m, each option includes copper tubes and sleeves to simplify routing and connections. Typical layouts use parallel runs with 8–12 cm spacing.
• Flexible power planning: Designed for 220 V operation with a working range of 7–300 V. Power output depends on length; for example, at 220 V, a 10 m run yields about 150 W total. Power can be estimated with P = V^2 / (L × R).
• Infrared warmth: Emits infrared energy in the 8–18 µm range to provide comfortable heat at the floor level, helping maintain warm floors without overheating the room.

Product Details

• Brand: MINCO HEAT
• Model: CF-12-RO

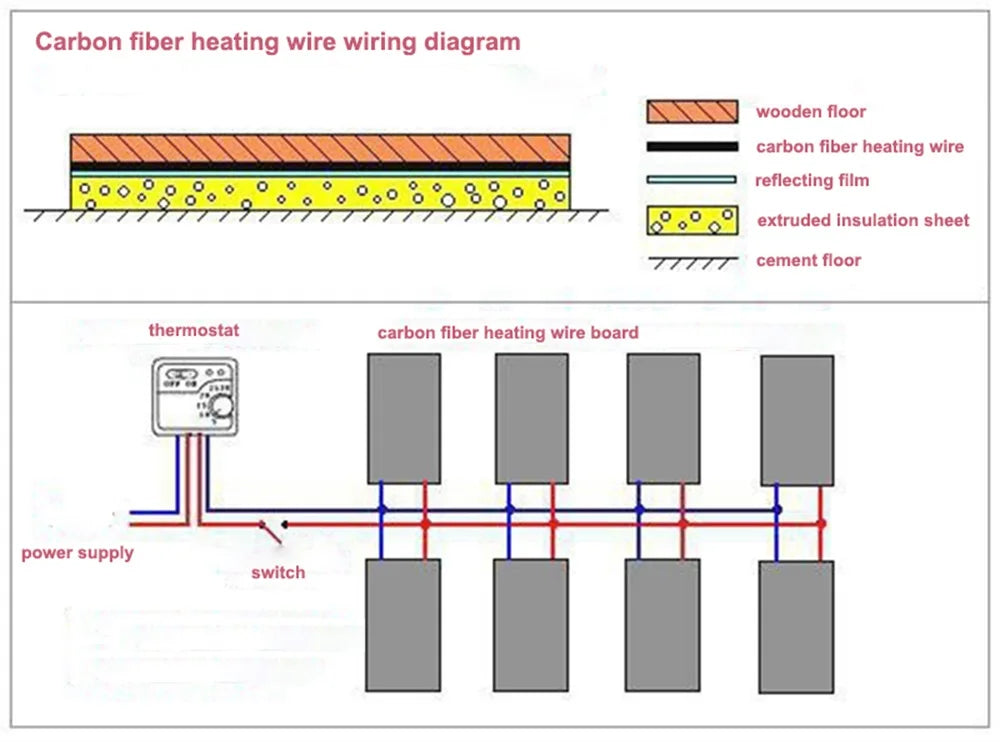

• Application: Underfloor warming / radiant floor heating

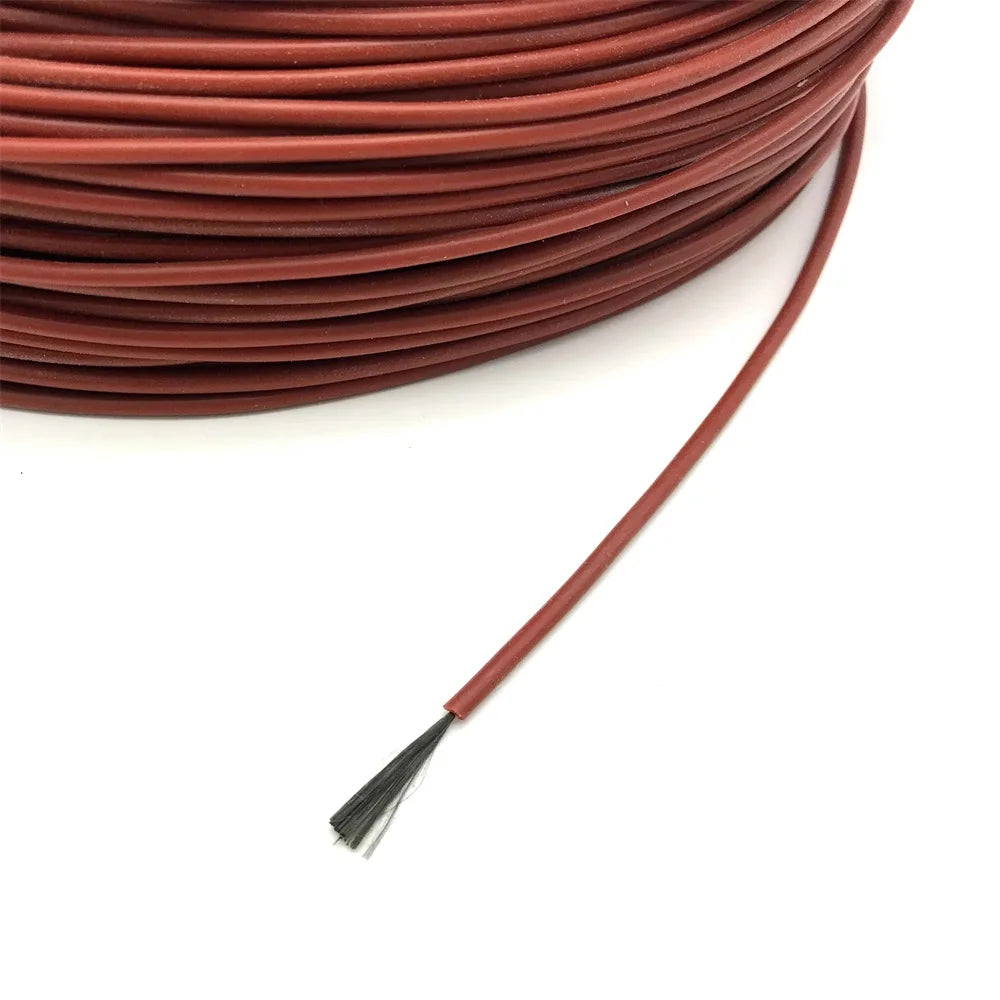

• Core conductor: Carbon fiber, 12K
• Resistance: 33 Ω/m (±10%)
• Diameter: 3 mm ± 0.2

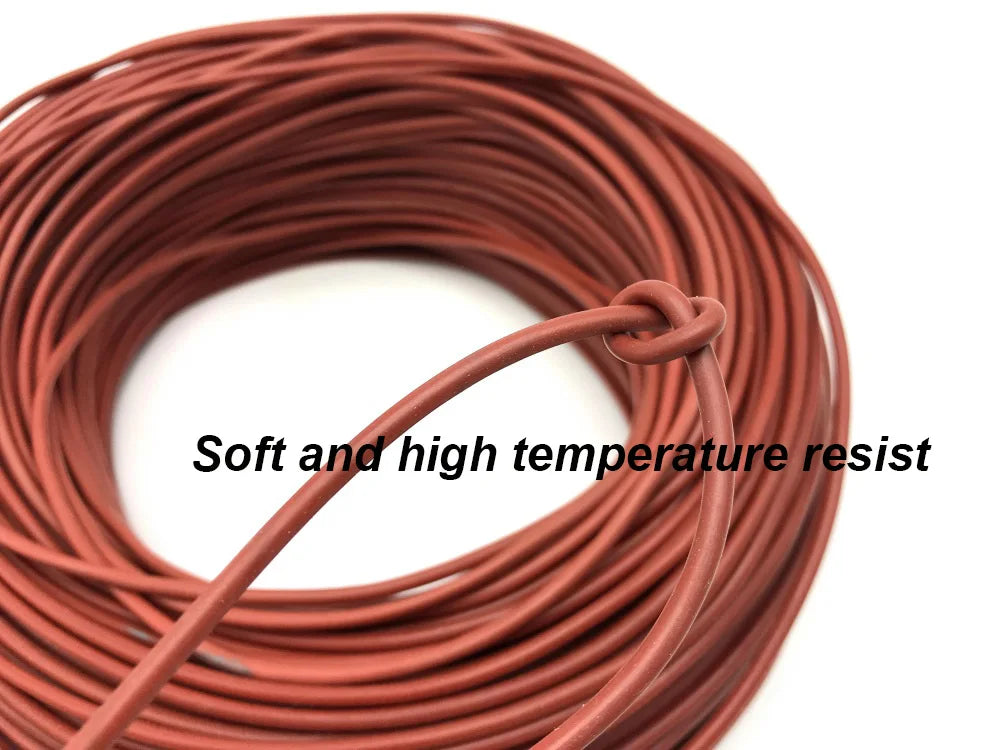

• Insulation: Silicone rubber
• Jacket: PEX
• Max temperature: 200°C
• Operating voltage: 220 V (working range 7–300 V)
• Power density: 150 W/m²
• Infrared wavelength: 8–18 µm
• Leakage current: 0.05 mA/m
• Color: Red

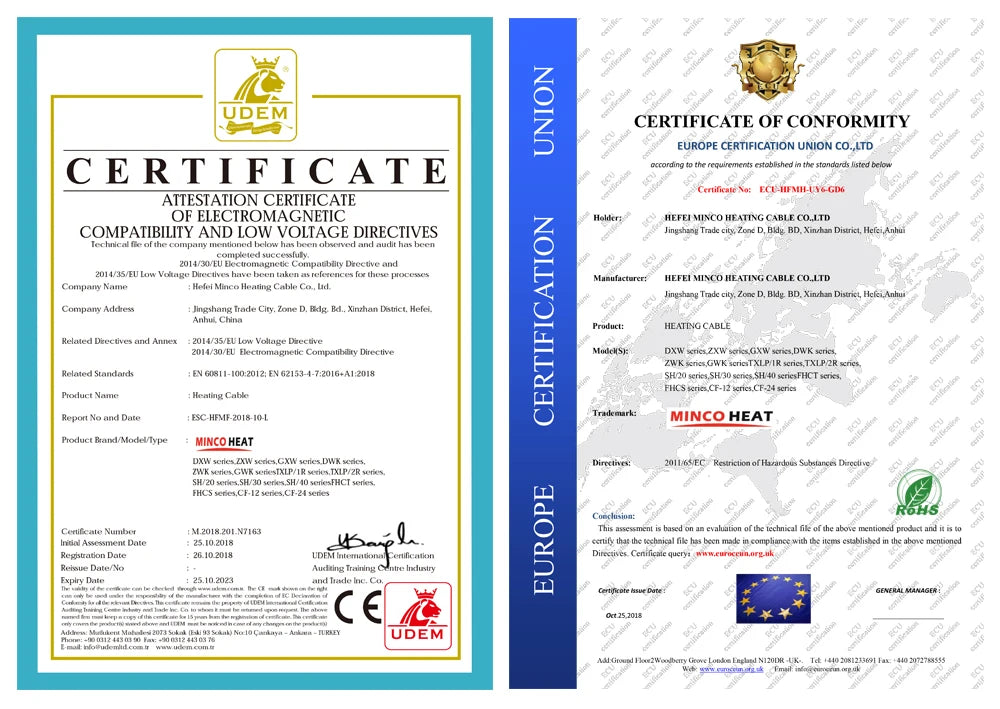

• Certifications: CE, RoHS

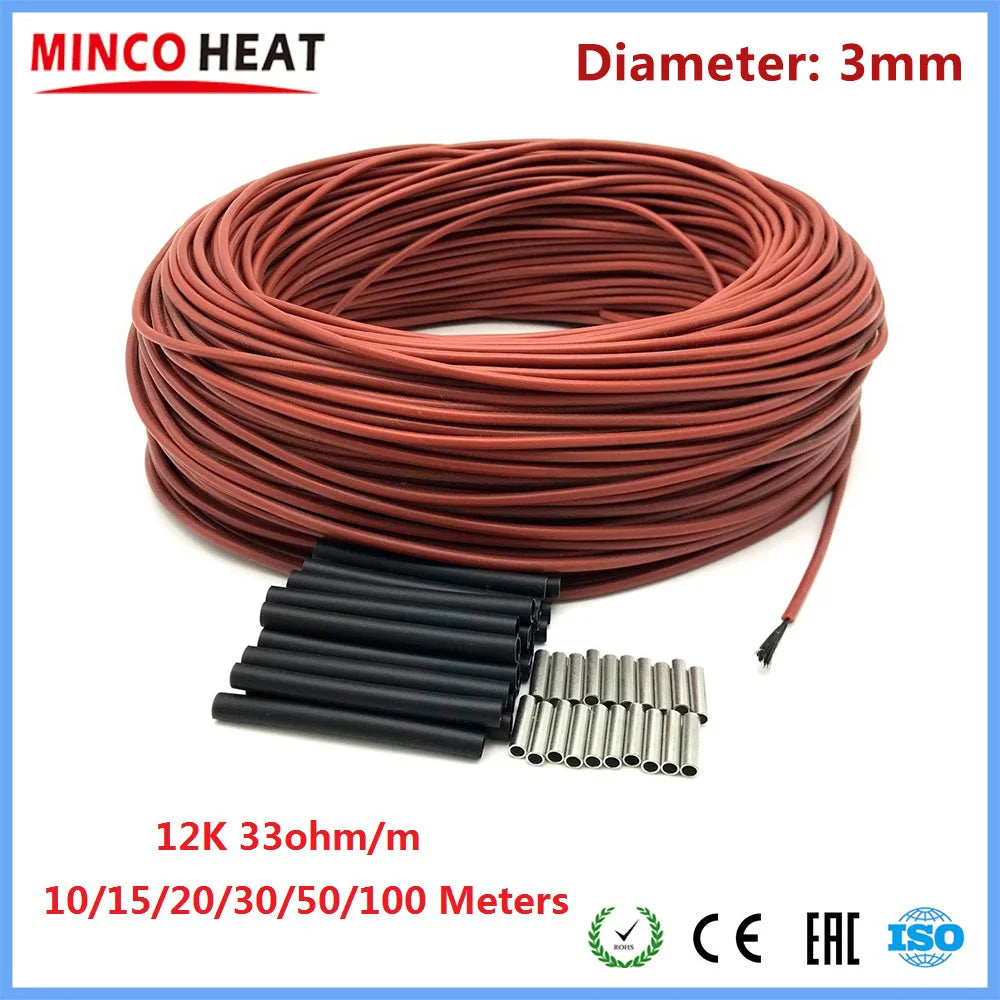

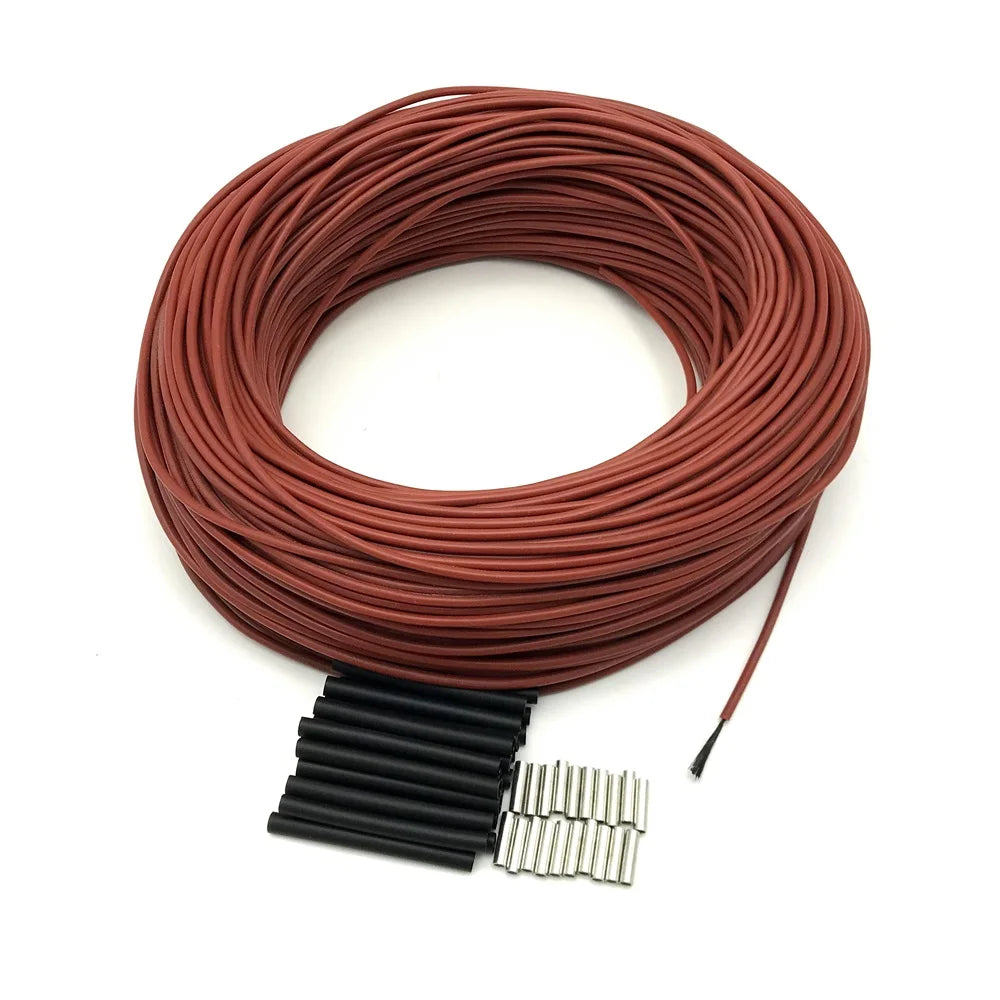

• Length options / Packaging:

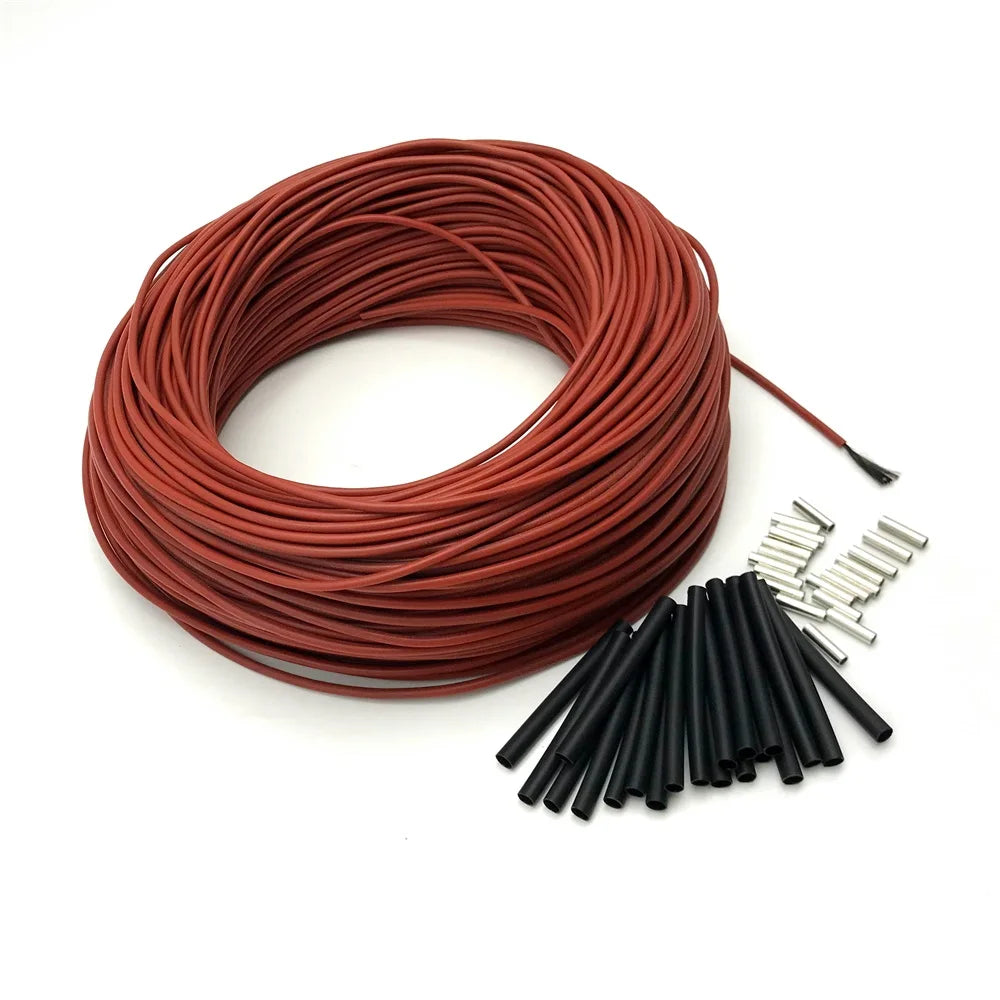

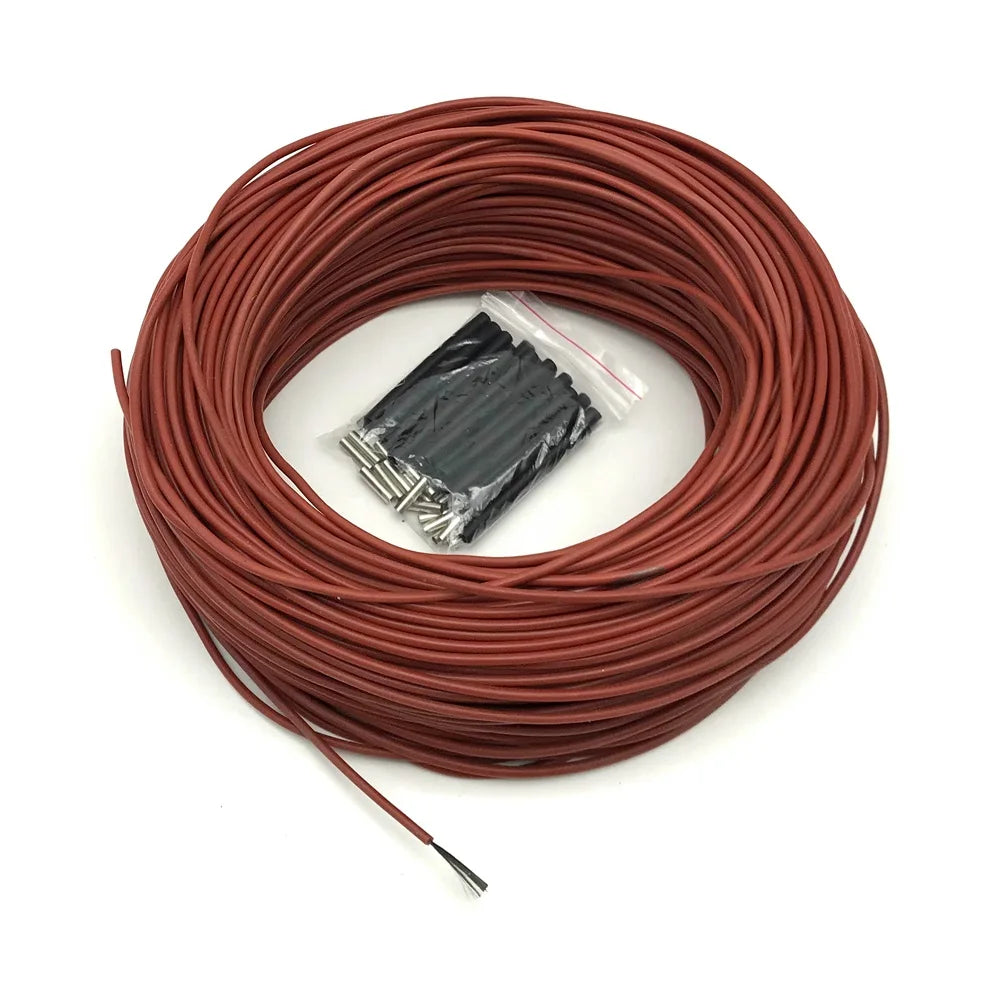

  • 100 m: 100 m cable + 20 copper tubes + 20 sleeves
  • 50 m: 50 m cable + 10 copper tubes + 10 sleeves
  • 30 m: 30 m cable + 6 copper tubes + 6 sleeves
  • 20 m: 20 m cable + 4 copper tubes + 4 sleeves
  • 15 m: 15 m cable + 4 copper tubes + 4 sleeves
  • 10 m: 10 m cable + 2 copper tubes + 2 sleeves
